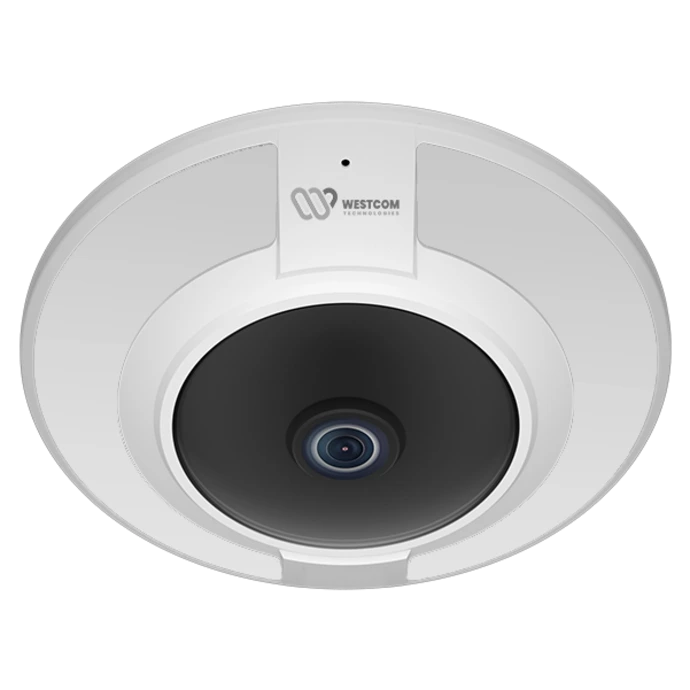

Camera |
Image Sensor | 1/2.8” Progressive Scan CMOS |
Max. Resolution | 6MP, 2560(H) × 2560(V) |
Electronic Shutter | Auto/Manual, 1/5 to 1/100,000s |
Min. illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
Day & Night | IR cut filter |
Wide Dynamic Range | True WDR |
Lens |
Lens Type | Fixed Lens |
Iris | Fixed Iris |
Focal Length | 1.5 mm |
Max. Aperture | F2.0 |
Field of View (FOV) | 180° × 180° |
Illuminator |
Illuminator Type | IR LED |
Illumination Distance | Up to 15 m (49.2 ft.) |
Illumination On/Off Control | Auto/ Manual |
IR Wavelength | 850 nm |
Intelligent Analytics |
Multi-Object Detection | Supports face, human, vehicle detection and capture. Supports multiple frame modes: Full Frame, Four-corner Frame, and Mosaic. |
Intelligent Analysis | Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, and Smart motion detection. (Support available only in single-channel mode) Support alarm triggering by specified target types (human and vehicle). |
People Counting | Supported |
Heat Map | Supported |
Video and Audio |
Streaming Capability | 2 Streams |
Main Stream | One-Channel: - Fisheye View: 2560×2560, 2048×2048, 1920×960, 1280×1280, 1280×960 @25/30fps - 180° Panorama View: 2560×640, 1920×480, 1280×960 @25/30fps - 360° Panorama View: 2560×1280, 1920×960, 1280×960 @25/30fps - 4PTZ View: 2048×1536, 1920×1440, 1280×960 @25/30fps - Fisheye + 3PTZ View: 2048×1536, 1920×1440, 1280×960 @25/30fps Multi-Channel: 1520×1520, 1280×960, 960×960, 720×720, 640×640 @25/25fps |
Sub Stream | One-Channel: - Fisheye View: D1, 640×640, 480×480 @25/30fps - 180° Panorama View: 832×208, D1 @25/30fps - 360° Panorama View: 640×640, D1 @25/30fps - 4PTZ View: 640×480, D1, 320×240 @25/30fps - Fisheye + 3PTZ View: 640×480, D1, 320×240 @25/30fps Multi-Channel: 640×640, D1 @25/30fps |
Bit Rate Control | CBR/VBR |
Video Compression | H.265, H.264, and MJPEG |
Bit Rate | One-Channel: - Stream1: 200Kbps to 16Mbps - Stream2: 100Kbps to 6Mbps Multi-Channel: - Stream1: 100Kbps to 12Mbps - Stream2: 100Kbps to 6Mbps |
Smart Encoder | Supported |
Region of Interest (ROI) | Support (Single-channel and fisheye mode) |
Audio Compression | G.711 A-law, G.711 μ-law, RAM PCM |
Audio Bit Rate | 64 Kbps (G.711), 128 Kbps (RAW_PCM) |
Image |
Image Adjustment | Brightness, Sharpness, Contrast, Saturation adjustable |
Scene Setting | Indoor, Outdoor |
Exposure Mode | Auto, Manual, Shutter priority |
White Balance | Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual |
Day/Night Setting | Auto, Day, Night, Timer |
Noise Reduction | 2D/3D DNR |
Image Enhancement | WDR, HLC, BLC, Defog |
Privacy Masking | Support (Single-channel and fisheye mode) |
Fisheye Display |
Mount Type | Ceiling Mount, Wall Mount, Table Mount |
Decoding Mode | On-board Dewarping/Client-side Dewarping |
Display Mode | 12 display modes in total Client-side Dewarping: - 180° panorama view, 360° panorama view, 360° panorama + PTZ, 360° panorama + 3PTZ, 360° panorama + 6PTZ, 360° panorama + 8PTZ, Fisheye view, Fisheye + 3PTZ, Fisheye + 8PTZ, 4PTZ, 2PTZ, Fisheye + 1PTZ + 360° On-board Dewarping: - Fisheye view, Double panorama view, 4PTZ, Single panorama view, Fisheye + 3PTZ |
Event |
Alarm Triggers | IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection |
Events Action | Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output |
Network |
Protocols | IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast |
Interoperability | ONVIF (Profile S/T/G/M), SDK, CGI |
Max Concurrent Streams | 10 channels |
User/Host Level | 32+ users, 3 levels: Administrator, Operator, Media user |
Security | IP address filter, HTTPS, Illegal login lock, IEEE 802.1x |
Web Viewer | <IE11, Chrome, Firefox, Microsoft Edge |
Interface |
Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
Built-in Microphone | Supported |
Audio Interface | 1ch Input, 1ch Output |
Alarm Interface | 1ch Input, 1ch Output |
SD Card Slot | Built-in, up to 1 TB |
Reset Button | Supported |
General |
Language | English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English |
Power Supply | 12 VDC (-15% to +20%) / PoE (802.3af) |
Power Consumption | Max 9 W |
Operating Temperature | -30°C to 60°C (-22°F to 140°F ) |
Operating Humidity | Less than 90% RH |
Ingress Protection | IP66 |
Certifications | CE-EMC - EN 55032, EN IEC 61000-6-3, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4 FCC 47 CFR Part 15 Subpart B |
Material | Aluminum alloy body, bubble: plastic |
Dimensions | Φ130.1 × 38.3 mm ( Φ5.12 × 1.51 inch) |
Net Weight | Approx. 427 g (0.94 lb) |
