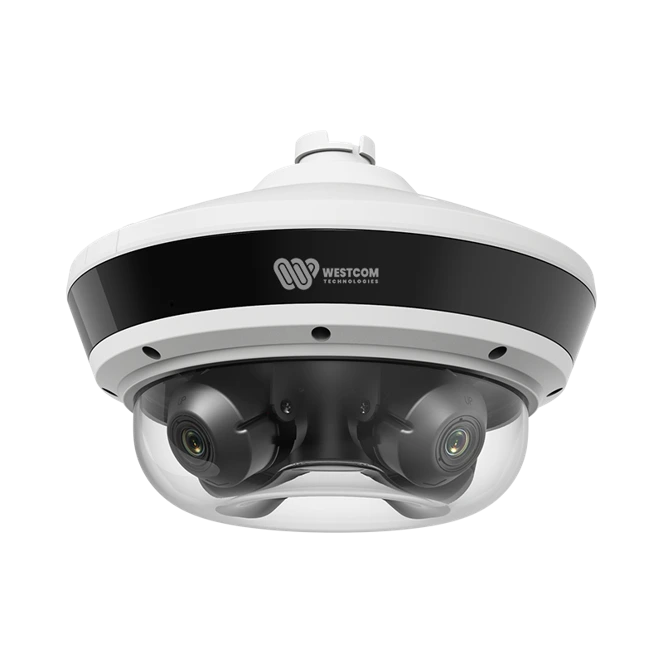

EMS66032

 4 × 8MP 4-Directional Multi-sensor Network Camera

  • Four 8MP 1/2.8" STARVIS CMOS image sensor
  • 4 adjustable lenses in one camera, each lens up to 8 MP (3840 × 2160) @25/30 fps
  • 2.7 to 13.5 mm motorized lens
  • Video Compression H.265, H.264, and MJPEG
  • Supports face, human, and vehicle detection & capture.
  • Supports human and vehicle attribute detection.
  • Intelligent analytics: Intrusion, smart motion detection, single line crossing, double line crossing, loitering, wrong-way detection, area people limit, perimeter detection, illegal parking, running detection, fall detection, fight detection, enter area, and leave area, and people counting
  • WDR Pro (120dB), 3D DNR, ROI, Defog, HLC
  • Built-in microphone, 1/1 audio in/out, 4/2 alarm in/out
  • Built-in microSD card slot (up to 1TB)
  • Smart IR distance up to 40 m
  • IP67, IK10-rated housing
AI Video Analytics on Edge Deep Learning TechnologyComplete Video Security Solution with WESTCOMEMS66032 AI Camera DatasheetAI Network Camera Operation Guide

AI Video Analytics on Edge

Our Smart VCA (Video Content Analysis) suite is the next-generation video analytics solution running directly on WESTCOM cameras for superior security applications. This powerful on-board suite includes comprehensive detection capabilities such as Intrusion, Loitering, and Line Crossing, alongside advanced features like Running and Crowd Detection, Face Detection, Unattended Object Detection, and Missing Object Detection.

Learn more

Deep Learning Technology

WESTCOM's VCA is powered by a deep learning AI engine, delivering significantly advanced accuracy in people detection compared to traditional rule-based designs. Leveraging our vast surveillance experience and extensive image databases, we developed a neural-network powered engine trained specifically to recognize the human form instantly. Since people are the primary focus of most surveillance, this feature allows users to quickly configure installations. People-detection ensures that only human activities trigger events, effectively ignoring swaying vegetation, vehicles, and animals. This drastically reduces false alarms and minimizes the time and effort needed for camera configuration.

Learn more

Complete Video Security Solution with WESTCOM

Manage all devices and accounts from a single, unified platform. This gives you accurate event monitoring and intuitive security system operation—including video investigation—no matter your location.

AI adoption in security is frequently hindered by challenging installation and configuration processes, resulting in slower implementation for installers and a higher learning curve for end-users. Deep Search is designed to address this complexity head-on. It simplifies the entire process and provides automated investigation features that quickly transform user judgment into confident, efficient action.

Learn more

Camera

Image Sensor

4 × 1/2.8” Progressive Scan CMOS

Max Resolution

8MP, 3840(H) × 2160(V)

Shutter Speed

1/5 to 1/100,000s

Min Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR on

Day & Night

Auto (ICR)

Angle Adjustment

Pan: -180˚ to 180˚, Tilt: 0˚ to 130˚, Rotation: 0˚ to 355˚

Lens

Lens Type

Varifocal lens, Motorized focal

Focal Length

2.7 to 13.5 mm

Max. Aperture

F1.6

Field of View (FOV)

H: 108.0° to 31.4°, V: 56.1° to 17.6°

Iris

Auto Iris

DORI Distance

Detect

95 to 290 m (311.7 to 951.4 ft)

Observe

38 to 116 m (124.7 to 380.6 ft)

Recognize

19 to 58 m (62.3 to 190.3 ft)

Identify

9.5 to 29 m (31.2 to 95.1 ft)

DORI (Detect, Observe, Recognize, and Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances.

Illuminator

Type

IR

IR wavelength

850 nm

Distance

Up to 40 m (131.2 ft)

Control

Auto/Manual

Intelligent Analytics

AI Multi-Target

- Supports face, human, and vehicle detection & capture - Supports human and vehicle attribute detection - Supports multiple frame modes: Full Frame, Four-Corner Frame, Mosaic

Attribute Extraction

Human Attributes: Gender, age, glasses, hat, bag, upper clothing color & style, lower clothing color & style, reflective vest Vehicle Attributes: Type, color, brand, orientation

Intelligent Analysis

Intrusion, smart motion detection, single line crossing, double line crossing, loitering, wrong-way detection, area people limit, perimeter detection, illegal parking, running detection, fall detection, fight detection, enter area, and leave area - Supports accurate target classification (human/vehicle)

People Counting

Supported

Video & Audio

Number of Streams

3 Streams

Resolution

Stream1: 3840 × 2160, 2592 × 1944, 2592 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720 Stream2: D1, VGA, CIF Stream3: VGA, CIF, QVGA

Frame Rate

Up to 25/30fps

Bit Rate Control

CBR/VBR

Video Compression

H.265, H.264, and MJPEG

Bit Rate

Stream1: 200 Kbps to 16 Mbps Stream2: 100 Kbps to 6 Mbps Stream3: 100 Kbps to 3 Mbps

Smart Encoding

Supported

Region of Interest (ROI)

Off / On (8 Zone, Rectangle)

Audio Compression

G.711 A-law, G.711 μ-law, RAW_PCM

Audio Bit Rate

64 Kbps (G.711), 128 Kbps (RAW_PCM)


Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Mode

Indoor, Outdoor, Mirror, Corridor mode

Exposure Mode

Auto, Manual, Shutter priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day, Night, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

WDR, HLC, BLC, Defog

Wide Dynamic Range

WDR Pro (120dB)

Privacy Masking

Up to 4 × 4 areas

Event

Alarm Triggers

IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Event Actions

Alarm record, Alarm output, FTP upload, SMTP upload, Snapshot, Audible alarm output

Network

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Application Programming Interface

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 levels: Administrator, Operator, Media user

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Security

OS / Firmware Protect

Encrypted firmware, Secure boot, Signed firmware

User Authentication

Digest authentication, Prevent brute-force attack

Network Authentication

IEEE 802.1X (EAP-TLS)

Secure Communication

HTTPS, WSS(WebSocket Secure), SRTP

Access Control

IP-based access control, Auto logout

Data Protect

Encryption credentials

Audit

Access / System / Event Log management

Secure Storage

SDcard partition encrypt(AES-256), Secure element

Supply Chain Security

SBOM

Interface

Network Interface

1 × Ethernet (10/100 Base-T), RJ-45 connector

Built-in Microphone

Supported

Audio Interface

1ch Input, 1ch Output

Alarm Interface

4ch Input, 2ch Output

RS-485

1 RS-485

CVBS Output

Supported

SD Card Slot

Built-in microSD card slot, up to 1 TB

Reset Button

Supported

General

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

12 VDC (-15% to +25%) / PoE+ (802.3at)

Power Consumption

Typical: 10.8 W (12 VDC) / approx. 13.5 W (PoE) Max (IR on): 20.2 W (12 VDC) / approx. 25.3 W (PoE)

Operating Temperature

-40°C to 60°C (-40°F to 140°F )

Operating Humidity

Less than 95% RH

Ingress Protection

IP67, IK10

Certifications

CE-EMC - EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4 FCC 47 CFR Part 15 Subpart B

Material

Aluminum alloy body, bubble: plastic

Dimensions

Φ282 × 206.3 mm (φ11.1 × 8.12 inch) , (Bracket not included)

Net Weight

Approx. 4 kg (8.82 lb), (Bracket not included)
