AI Video Analytics on Edge
Our Smart VCA (Video Content Analysis) suite is the next-generation video analytics solution running directly on WESTCOM cameras for superior security applications. This powerful on-board suite includes comprehensive detection capabilities such as Intrusion, Loitering, and Line Crossing, alongside advanced features like Running and Crowd Detection, Face Detection, Unattended Object Detection, and Missing Object Detection.

Deep Learning Technology
WESTCOM's VCA is powered by a deep learning AI engine, delivering significantly advanced accuracy in people detection compared to traditional rule-based designs. Leveraging our vast surveillance experience and extensive image databases, we developed a neural-network powered engine trained specifically to recognize the human form instantly. Since people are the primary focus of most surveillance, this feature allows users to quickly configure installations. People-detection ensures that only human activities trigger events, effectively ignoring swaying vegetation, vehicles, and animals. This drastically reduces false alarms and minimizes the time and effort needed for camera configuration.


Complete Video Security Solution with WESTCOM
Manage all devices and accounts from a single, unified platform. This gives you accurate event monitoring and intuitive security system operation—including video investigation—no matter your location.
AI adoption in security is frequently hindered by challenging installation and configuration processes, resulting in slower implementation for installers and a higher learning curve for end-users. Deep Search is designed to address this complexity head-on. It simplifies the entire process and provides automated investigation features that quickly transform user judgment into confident, efficient action.

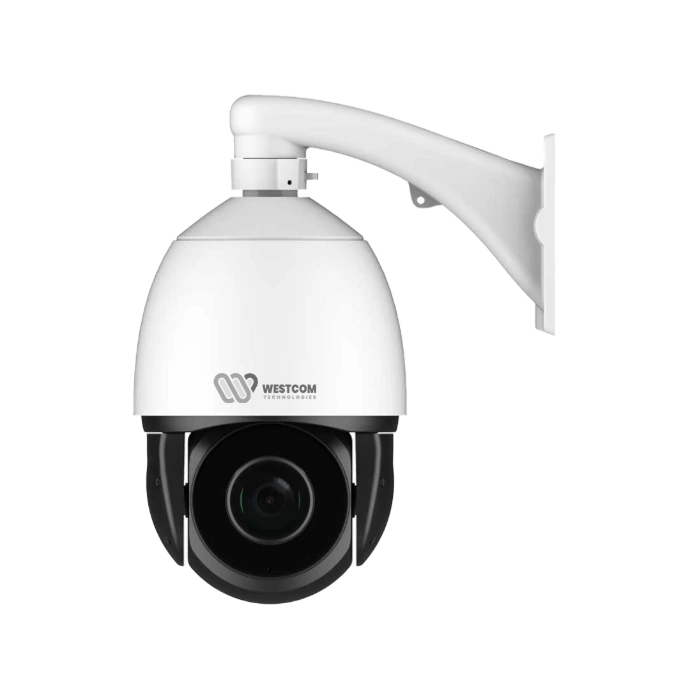

Camera
Image Sensor | 1/2.8” Progressive Scan CMOS |
Max. Resolution | 2592(H) × 1520 (V) |
Electronic Shutter | Auto/Manual, 1/5 to 1/20,000s |
Min. illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
Day & Night | Auto (ICR) |
Wide Dynamic Range | WDR Pro |
Wiper | Support |
Lens
Focal Length | 5.0 to 200 mm |
Max. Aperture | F1.68 to F5 |
Field of View (FOV) | H: 64.9° to 1.8°, V: 40.6° to 1.1° |
Optical Zoom | 40x |
Digital Zoom | 16x |
Iris Control | Auto/Manual |
Focus Control | Auto/Manual/Semi-automatic |
DORI Distance
Detection | 82 to 3,280 m (269.03 to 10,761.15 ft) |
Observe | 32.8 to 1,312 m (107.61 to 4,304.46 ft) |
Recognize | 16.4 to 656 m (53.81 to 2,152.23 ft) |
Identify | 8.2 to 328 m (26.9 to 1,076.12 ft) |
DORI (Detect, Observe, Recognize, and Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances.
Illuminator
Illuminator Type | IR |
Illumination Distance | IR distance up to 300 m (984.3 ft) |
Illumination On/Off Control | Auto/Manual |
IR wavelength | 850 nm |
Intelligent Analytics
Multi-Object Detection | Support face, human, vehicle detection and capture Supports multiple frame modes: Full Frame, Four-corner Frame, and Mosaic. |
Smoke and Flame Detection | Support |
Intelligent Analysis | Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way detection, Illegal parking, and Smart motion detection (support the accurate detection of vehicle and human) |
People Counting | Support |
Smart Tracking | Support |
PTZ
Pan/Tilt Range | Pan: 0° to 360° endless, Tilt: -10° to +90° (auto-flip) |
Pan Speed | Pan speed: 0.1° to 300°/s, preset speed: 300°/s |
Tilt Speed | Tilt speed: 0.1° to 300°/s, preset speed: 300°/s |
Presets | 400 |
Patrol Scan | 6 Track, 12 Scan, 12 Patrol (up to 32 presets each patrol) |
Power-Off Memory | Support |
3D Positioning | Support |
PTZ Status Display | Support |
Idle Motion | The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be run. |
Video and Audio | |
Streaming Capability | 3 Streams |
Stream/Frame Rate | Stream1: 2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720 @25/30fps Stream2: D1, VGA, CIF @25/30fps Stream3: VGA, CIF, QVGA @25/30fps |
Bit Rate Control | CBR/VBR |
Video Compression | H.265, H.264, and MJPEG |
Bit Rate | Stream1: 200 kbps to 16 Mbps Stream2: 100 kbps to 6 Mbps Stream3: 100 kbps to 3 Mbps |
Smart Encoder | Support |
Region of Interest (ROI) | Support |
Audio Compression | G.711 A-law, G.711 μ-law, RAW_PCM |
Audio Bit Rate | 64 kbps (G.711), 128 kbps (RAW_PCM) |
Image | |
Image Adjustment | Brightness, Sharpness, Contrast, Saturation adjustable |
Scene Mode | Indoor, Outdoor, Mirror |
Exposure Mode | Auto, Manual, Shutter priority, Iris priority |
White Balance | Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual |
Day/Night Setting | Auto, Day, Night, Timer |
Noise Reduction | 2D/3D DNR |
Image Enhancement | HLC, BLC, Defog, WDR, Anti-shake |
Privacy Masking | Support 40 zones, mask color configurable |
Event | |
Alarm Triggers | IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection |
Event Actions | Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output |
Network | |
Protocols | IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast |
Interoperability | ONVIF (Profile S/T/G/M), SDK, CGI |
Max Concurrent Streams | 10 channels |
User/Host Level | 32+ users, 3 levels: Administrator, Operator, Media user |
Security | IP address filter, HTTPS, Illegal login lock, IEEE 802.1x |
Web Viewer | <IE11, Chrome, Firefox, Microsoft Edge |
Interface | |
Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
Audio Interface | 1ch Input, 1ch Output |
Alarm Interface | 7ch Input, 2ch Output |
RS-485 | Support |
BNC Interface | 1 BNC (CVBS output) |
SD Card Slot | Built-in, up to 1 TB |
General | |
Language | English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English |
Power Supply | 24 VAC / 36 VDC / PoE++ (802.3bt), Standard Equipped: 36VDC |
Power Consumption | Less than 45 W |
Operating Temperature | -40°C to 60°C (-40°F to 140 °F) |
Operating Humidity | Less than 90% RH |
Ingress Protection | IP66 |
Certifications | CE-EMC - EN 55032, EN IEC 61000-6-3, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4 CE-LVD - EN IEC 62368-1 FCC 47 CFR Part 15 Subpart B |
Material | Metal |
Dimensions | φ226.1×362.8 mm (φ8.9×14.28 inch) |
Net Weight | 5.5 kg (12.13 lb) |
